Vector Material Handling Equipment

Vector conveyors and recycling equipment is known for performing in the most rugged of conditions. With over 20 years of industry experience, Vector is known for crafting the highest quality machines that consistently surpass industry standards.
Request a Quote
Vector logo in yellow gradient with black border

The toughest machines in their class, proudly made in America.
Vector has been at the forefront of material processing and handling systems. Their exceptional machines have contributed to successful projects across the globe. From versatile conveyors to portable and advanced recycling systems, Vector’s lineup delivers cutting-edge solutions to meet diverse material processing needs. The Vector by MGL range of equipment can be trusted to empower your operations with unparalleled performance and reliability.


Conveying

Move heavy materials easily with one of Vector’s various conveyors. Wheeled and track conveyors, as well as feeders/stackers are available.

Wheeled Conveyors

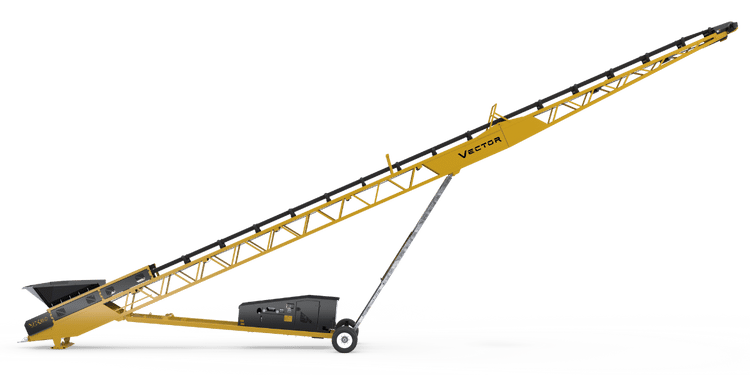

Vector VX80 Wheeled Conveyor

VX80

General Specifications:

  • Transport Length: 53’5″
  • Transport Width: 8.5’
  • Transport Height: 11′ 10″
  • Working Length: 80’
  • Working Width: 8.5’
  • Working Height (max): 35′
  • Weight (lbs.): 25,000
  • Engine: Kohler KDI 1903

Options:

  • Hydraulic transport jack
  • Engine upgrade, 74HP (Kohler or Cummins)
  • Cleated belt
  • Belt scale
  • Various impact zone configurations
Vector VX80R Wheeled Conveyor

VX80R

General Specifications:

  • Transport Length: 53′ 5″
  • Transport Width: 10’
  • Transport Height: 11′ 10″
  • Working Length: 80’
  • Working Width: 10’
  • Working Height (max): 35′
  • Weight (lbs.): 20,000
  • Engine: Kohler KDI 1903

Options:

  • Track dolly w/ Hydraulic transport jack
  • Engine upgrade, 74HP (Kohler or Cummins)
  • Cleated belt
  • Belt scale
  • Various impact zone configurations
  • Direct feed hopper

Track Conveyors

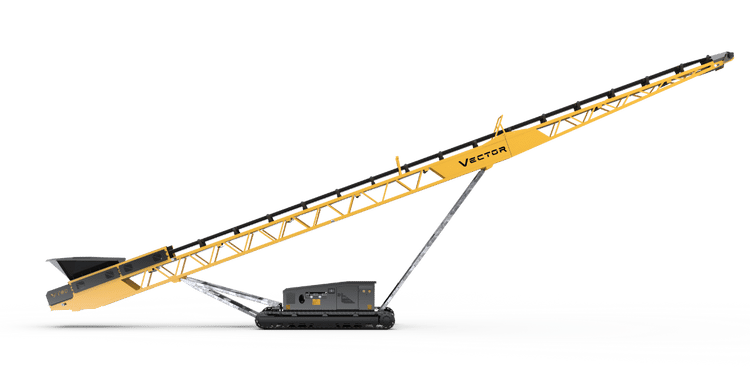

Vector VT80 Track Conveyor

VT80

General Specifications:

  • Transport Length: 53’5″
  • Transport Width: 8.5’
  • Transport Height: 11′ 10″
  • Working Length: 80’
  • Working Width: 8.5’
  • Working Height (max): 35′
  • Weight (lbs.): 25,000
  • Engine: Kohler KDI 1903

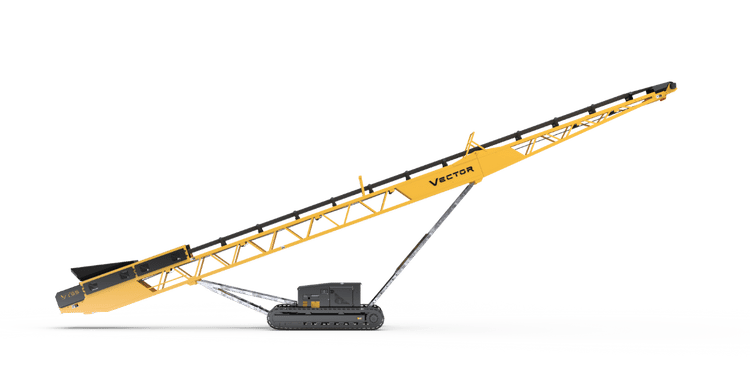

Vector VT65 Track Conveyor

VT65

General Specifications:

  • Transport Length: 45′ 5″
  • Transport Width: 8’
  • Transport Height: 11′ 4″
  • Working Length: 65’
  • Working Width: 8’
  • Working Height (max): 26.6′
  • Weight (lbs.): 22,000
  • Engine: Kohler KDI 1903

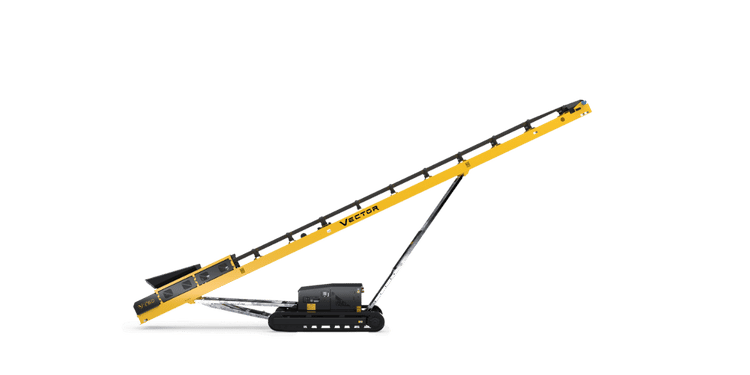

Vector VT50 Track Conveyor

VT50

General Specifications:

  • Transport Length: 52.2’
  • Transport Width: 8’
  • Transport Height: 8′ 11″
  • Working Length: 50’
  • Working Width: 8’
  • Working Height (max): 22’ 6″
  • Weight (lbs.): 14,000
  • Engine: Kohler KDW-1404

Stackers / Feeders

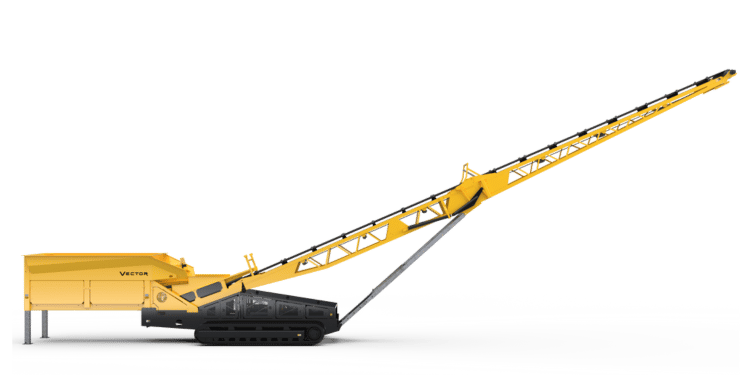

Vector Site Boss

Site Boss

General Specifications:

  • Transport Length: 57’ 8”
  • Transport Width: 10’
  • Transport Height (Axle): N/A
  • Transport Height (Low Boy): 13’
  • Working Length: 88’
  • Working Width: 10’
  • Working Height (min/max): 13’/33’ 8”
  • Weight (lbs.): 45,000
  • Engine: Perkins 1204F (110 HP)

Options:

  • Anti-bridging Auger in Hopper (Mulch Applications)

Coloring & Coating

Vector’s material coloring and coating machines allow for optimal mixing of colorant prior to coating rocks or mulch.

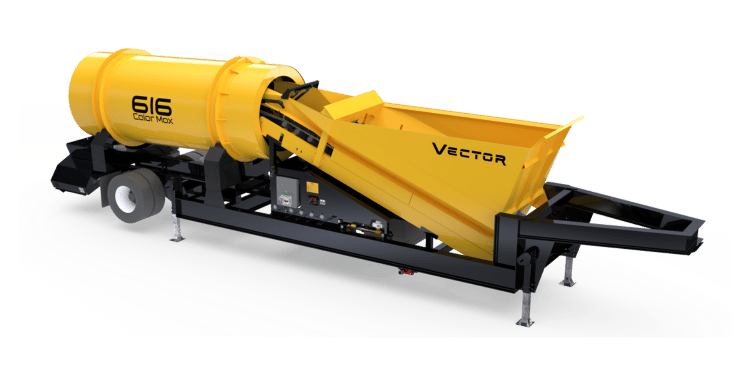

Vector 616 Color Max

616 Color Max

General Specifications:

  • Total weight 28,000 lbs (approx.)
  • Transport/Overall Length 44’ 6″
  • Transport Height 11’ 10”
  • Transport/working width 8’ 6”
  • Loading height 13′ 6″
  • Hopper Capacity 10’ CY (approx.)
  • Anti-bridging Auger in Hopper (Mulch applications)
  • Mixing Drum Length 16’
  • Mixing Drum Diameter 6′
  • Power Unit: Kohler KDI1903 TCR 56 HP Tier 4 Engine
  • Production Capacity: 250 YPH

Options:

  • Electric (480 V 3-Phase)

Applications:

  • Mulch
  • Aggregate/Sand
  • Salt

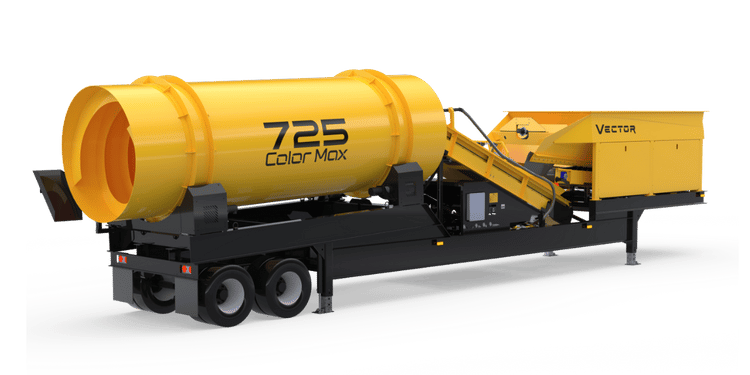

Vector 725 Color Max

725 Color Max

General Specifications:

  • Total weight 48,000 lbs (approx.)
  • Transport/Overall Length 53’
  • Transport Height 13’ 6”
  • Transport/working width 8’ 6”
  • Loading height 11’ 6” – 12’ 6”
  • Hopper Capacity 14’ CY (approx.)
  • Anti-bridging Auger in Hopper (Mulch applications)
  • Mixing Drum Length 25’
  • Mixing Drum Diameter 7’ 4”
  • Power Unit: Cummins 2.8L 74 HP Tier 4 Engine
  • Production Capacity: 300+ YPH

Options:

  • Hopper Extension
  • Full Additive Automation
  • Attached Discharge Conveyor for Increased Discharge Height
  • Electric Drives
  • Modular/Stationary Arrangements Available

Applications:

  • Mulch
  • Aggregate/Sand
  • Salt

Recycling

Easily recycle materials on site with the Vector VacMax.

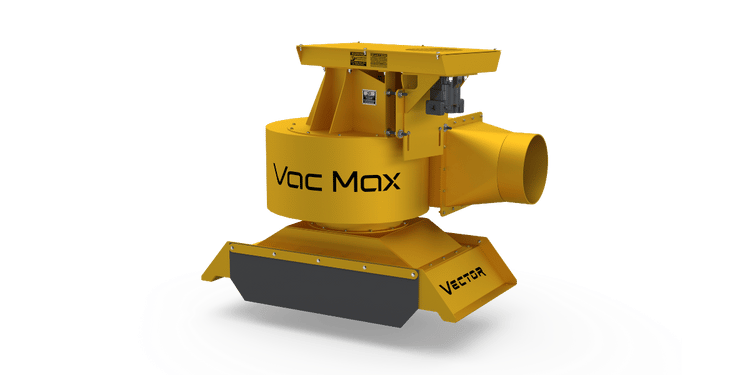

Vector Vac Max

Vac Max

General Specifications:

  • Drive: Hydraulic (15-25 GPM, 1200-2000 PSI)
  • Drive: Electric (15 HP, VFD recommended)
  • Max Fan Speed: 1200 RPM
  • Rotor Blades: HD Rubber (replaceable)
  • Standard and Custom Mounting Shrouds
  • Weight: 1050 lbs.

Options:

  • 16″ x 20′ Corrugated ducting
  • Power Unit: Kohler KDW1404 24HP Diesel, skid-mounted
