Digital Control HDD Locating Solutions
DCI is the industry leader in HDD walkover guidance technology. Receivers, transmitters, and remote displays enable you to increase jobsite productivity.
Request a Quote
Raising the bar.
DCI revolutionized the HDD industry with the introduction of the DigiTrak Locating system in 1991. The unique features of the new system provided greater accuracy for measuring the depth and location of the drill head than prior systems.
Falcon Receivers
Worry Free. Easy to Use. Versatile.
The Digitrak ARES and Falcon HDD locating systems are designed with you in mind. DCI has made it easier and faster to take full advantage of the benefits of Falcon Technology. Improvements that mean your crews can train faster, drill deeper, and finish more jobs than the competition.

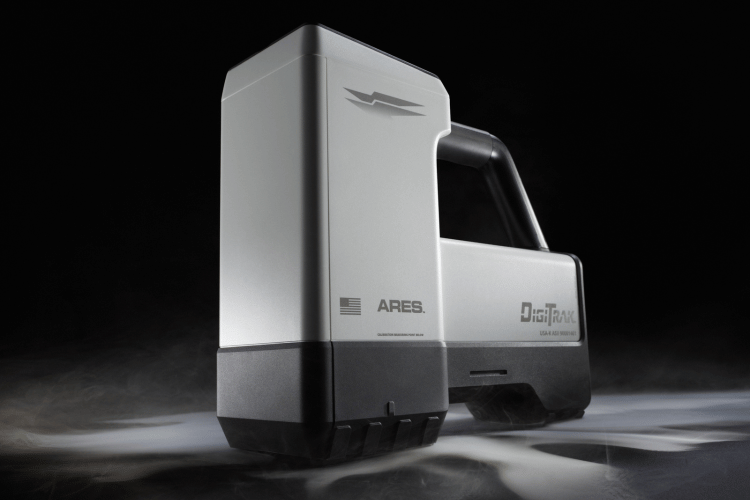

ARES™
With onboard Eagle Tech™ AI, the ARES delivers a smarter, simpler way to set up and locate so you spend less time prepping and more time drilling.
- Depth Range: 162 ft
- Data Range: 280 ft
- Wideband Range: 4.5 – 45 kHz
- Sub KiloHertz Range: 0.33 – 0.75 kHz
- Wideband Frequencies: 8,000
- Sub KiloHertz Frequencies: 3,800

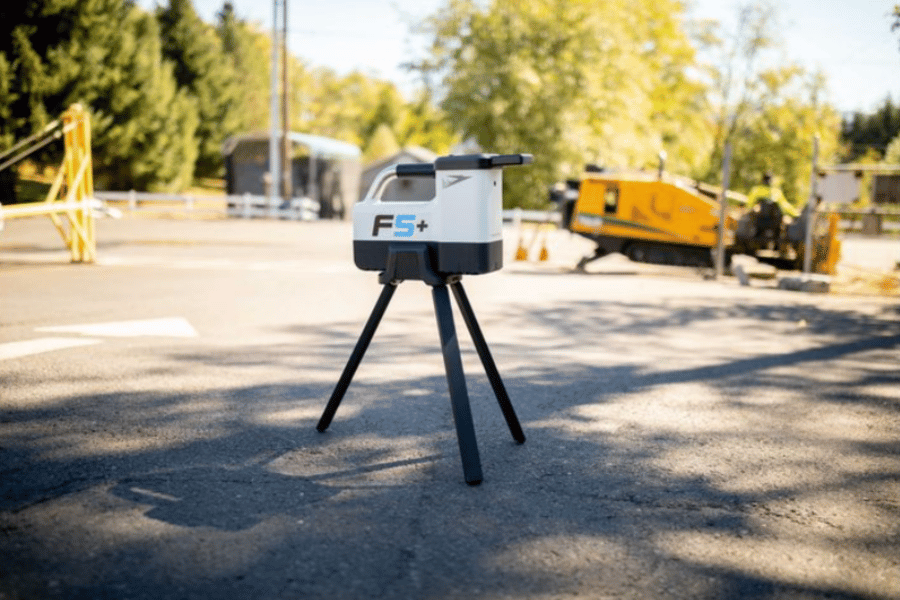

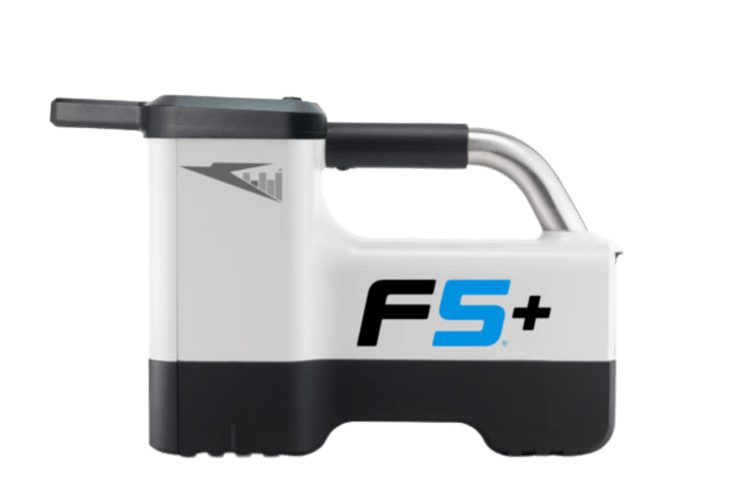

Falcon F5+
The Falcon F5+ has the broadest range of frequencies of any locator on the market, giving you the performance and versatility to complete the
job safely, accurately, and on time.
- Depth Range: 180 ft
- Data Range: 220 ft
- Wideband Range: 4.5 – 45 kHz
- Sub KiloHertz Range: 0.33 – 0.75 kHz
- Wideband Frequencies: 1,000
- Sub KiloHertz Frequencies: 300

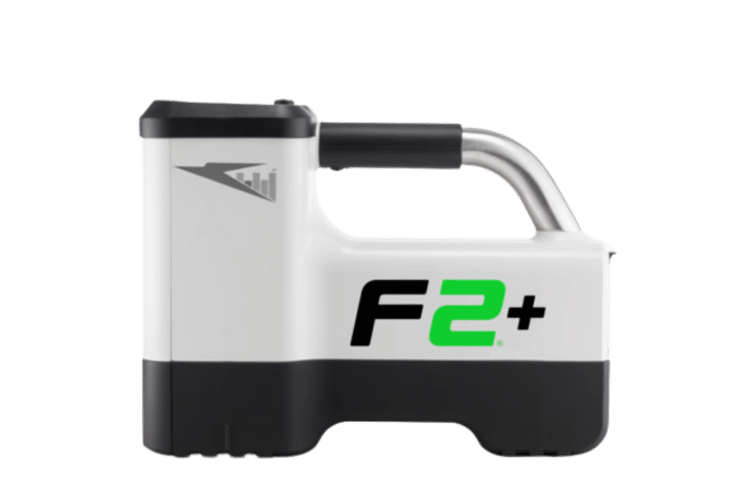

Falcon F2+
Battle active interference with the simple yet sophisticated F2+ system. Increase bore efficiency and reduce downtime, saving thousands of dollars per year.
- Depth Range: 160 ft
- Data Range: 200 ft
- Wideband Range: 4.5 – 45 kHz

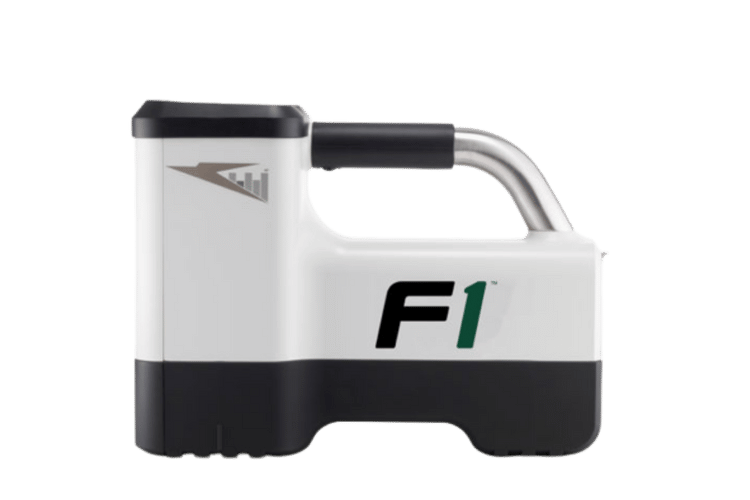

Falcon F1
Designed for projects such as house drops from street to home, the easy to use and friendly priced F1 uses a single band to combat active interference.
- Depth Range: 100 ft
- Data Range: 125 ft
- Single-band Range: 9-13 kHz
TeraTrak
The Wheel, Reinvented.
A major challenge of today’s bore plans is that they often become irrelevant a few rods in. This TeraTrak R1 generates continuous job site topography and gives you the vital date to create and update your bore plan on-the-fly, so it never becomes obsolete.
A New Dimension in Bore Planning
- Visualize underground hazards
- Target waypoints to drill with more confidence
- Rugged, reliable and waterproof hardware
- High Accuracy (± 2in over 500ft)
- Designed to Integrate with the DCI Product Suite

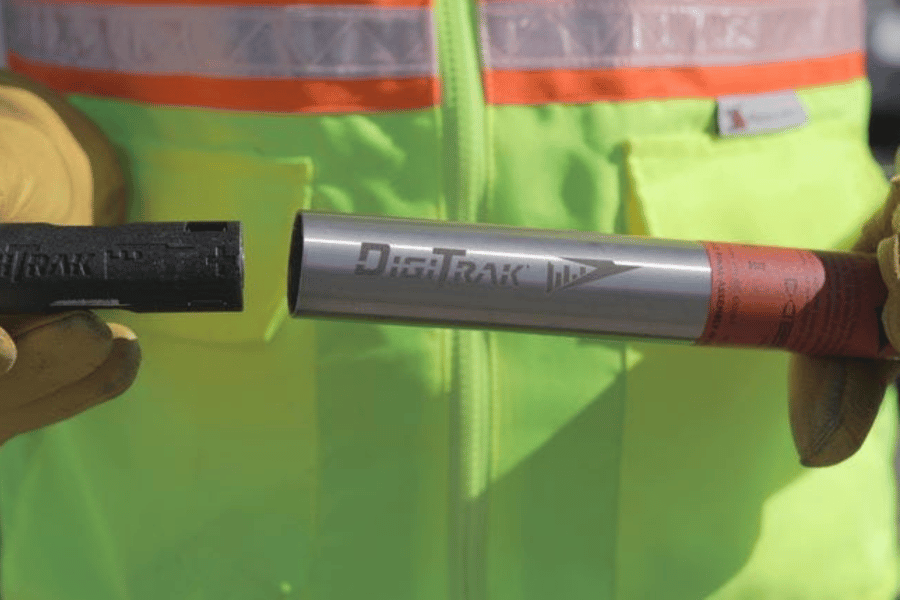

Transmitters
Quality. Durability. Trusted Performance.
For 30 years DCI has been the leader in transmitter design and manufacturing. That means more durability, better signal transmission, and backed the industry’s best extended warranty: 5 year/750 hours.

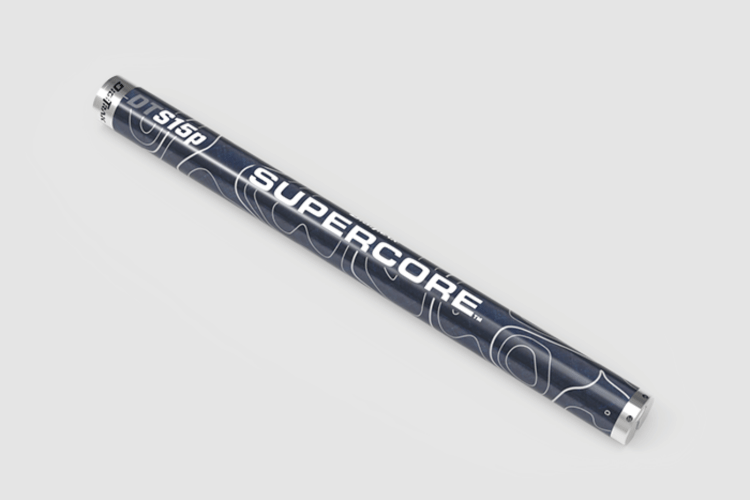

SuperCore™
The DigiTrak SuperCore™ marks a new generation of transmitters with a complete redesign from the ground up. This new architecture allows for a bigger antenna and larger battery, giving you more power when you need it. Bluetooth Pairing, Multi-Power, over 8000 Wideband and 3500 Sub-k™ Rebar frequencies.

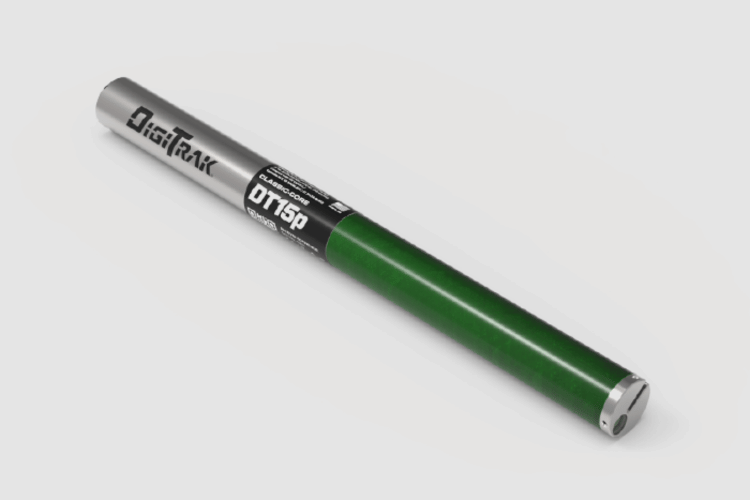

Classic-Core™
The DigiTrak Classic-Core is an All-in-one wideband and rebar transmitter, with Fluid Pressure, Bluetooth Pairing, and Multi-Power. Just like the SuperCore transmitter, but with different batteries and performance.

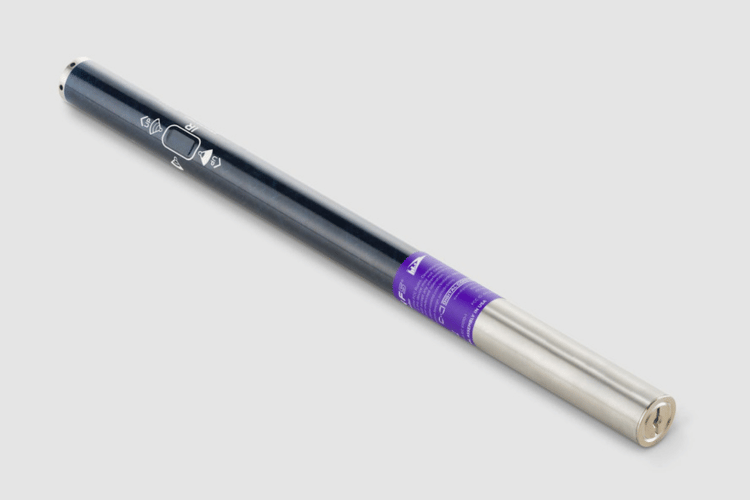

Falcon F5+
The DigiTrak Falcon F5+ transmitters with Multi-Power*, Sub-k®, Fluid Pressure (Except 8-in), Full-Scale Sensitive Pitch, and over 1000 frequencies to help you get the job done. Available in 24, 19, 15, 8, and 6-in lengths.

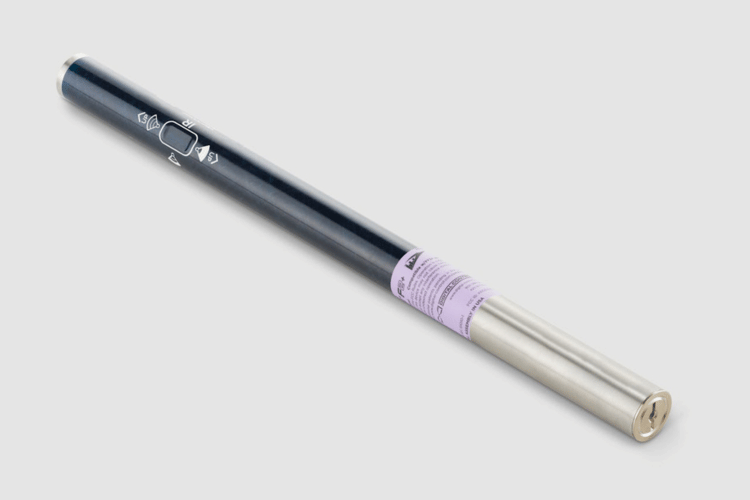

Falcon F2+
The DigiTrak Falcon F2+ transmitters support Multi-Power* and over 500 frequencies to help you avoid active interference. Available in 19, 15, 8, and 6-in lengths.

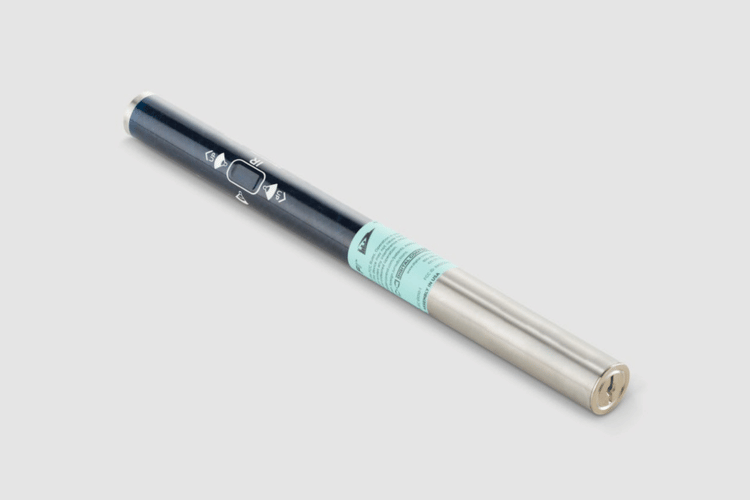

Falcon F1
The DigiTrak Falcon F1 transmitters, now available with Multi-Power*, support dozens of frequencies to help you tackle simple jobs fast. Available in 15, 8, and 6-in lengths.
Falcon F5
The DigiTrak Falcon F5 transmitters with Multi-Power, Sub-k®, Fluid Pressure, Full-Scale Sensitive Pitch, and over 1000 frequencies to help you get the job done. Available in 24, 19, 15, and 8-in lengths.
Falcon F2
The DigiTrak Falcon F2 transmitters support Multi-Power and over 500 frequencies to help you avoid active interference. Available in 15, and 8-in lengths.
F5
DigiTrak F5® transmitters are available in five frequencies to combat interference. Two single-frequency transmitters and two dual-frequency transmitters are offered, in addition to two dual-frequency fluid pressure transmitters (FPT). F5 transmitters work with F5 systems only.
F Series
DigiTrak F Series™ transmitters are available in two frequencies, as well as cable and short-range options. These transmitters are compatible with F5® and F2® systems.
SE
DigiTrak SE® transmitters are available in the 12-kHz frequency. These transmitters are compatible with SE systems only.
DucTrak
DigiTrak DucTrak™ transmitters are designed to track existing non-metal ducts to depths of 80 ft. These 12-kHz transmitters may be used with all receivers except the Mark Series.

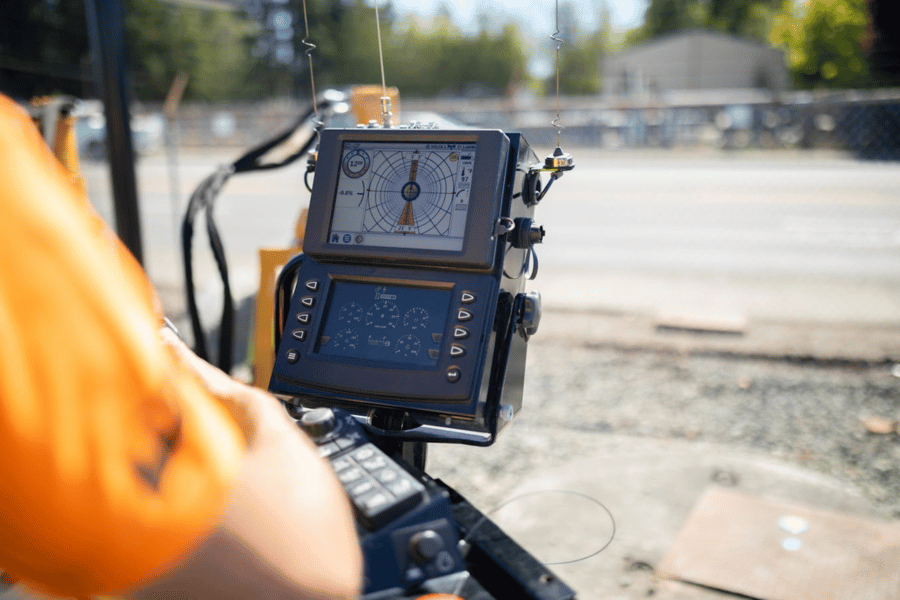

Remote Displays
The Ultimate HDD Command Center
The touchscreen Aurora remote display is the ultimate command center designed with HDD Operators in mind. Faster data speed, longer range, and packed with everything you need to safely and easily navigate the underground.
AF8
The Aurora 8.4-in display is available freestanding or panel-mounted. The robust, color touchscreen supports LWD Live, Target Steering, and other applications that increase jobsite productivity.
- Display Details: 8.4-in Touchscreen
- Telemetry Range: 1800 ft
Falcon Compact Display
The FCD is a rugged, entry-level display. A good choice for pit launchers and mini drills, its range also allows for longer shots.
- Power Source: Li-ion or NiMH battery pack
- Display Type: LCD
- Telemetry Range: 1000 ft
