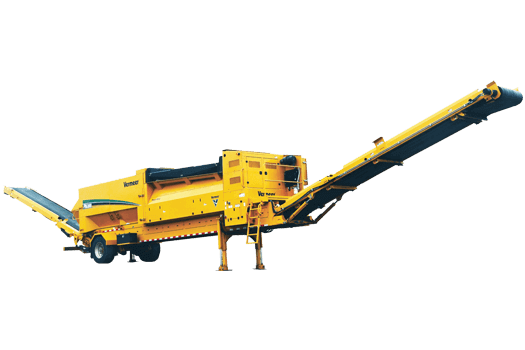

TR5300 Trommel Screen
- High productivity in a compact size
- Minimize overall maintenance time
- Complete control for overall jobsite confidence
General
| Manufacturer | Vermeer |
| Model | TR5300 Trommel Screen |
| Category | Landscape, Recycling |
| Price | Request a Quote |
| Year | 2024 |
General Dimensions and Weights
| Weight | 32000lbs (14515kg) |
| Hitch Weight | 11600lbs (5261.7kg) |
| Transport Length | 39ft (11.9m) |
| Transport Width | 98.4in (249.9cm) |
| Transport Height | 13.4ft (4.1m) |
| Operation Length | 89.9ft (27.4m) |
| Operation Width | 112.8in (286.5cm) |
| Operation Height | 15ft (4.6m) |
| Capacity | 100 cu yd (76.5 m3) per hr with .5" (12.7 mm) screens installed and material with moisture less than 40% |
Engine - Option one
| Make and Model | Deutz TD2.9L Tier 4 Final/ Stage IV |
| Number of Cylinders | 4 |
| Engine Rating | 74 hp (55 kW) @ 2600 rpm and 181 ft-lb (245.4 Nm) of torque @ 1600 rpm |
| Fuel Tank Capacity | 44gal (166.6L) |
| Fuel Consumption | 4.6 |
| Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) | 30deg |
| Battery | 950 Cold Cranking Amp Group 31 |
| Oil Filter | Spin-on |
| Recommended Oil | Mobil 15W40 |
| Oil Volume with Filter | 8.4qt (7.9L) |
| System Voltage | 12 |
| Air Cleaner | Dual element |
| Radiator Fan | Suction |
Hydraulic System
| Tank capacity | 55gal (208.2L) |
Chassis
| Frame Description | Heavy Duty Structural Tubing |
| Axle/Suspension | Single Leaf Sprung |
| Capacity | 20000lbs (9071.8kg) |
| Tires - Option One | 445/50R22.5 |
Hopper and Apron Conveyor
| Hopper Capacity | 5.5cu yd (4.2cu m) |
| Hopper Bottom Width | 34in (86.4cm) |
| Hopper Height | 9.5 |
| Hopper Opening | 34x37 |
Screen Drum
| Drum Operation | 0-30.9 gpm (0-117.0 L/min) |
| Drum Diameter | 5ft (1.5m) |
| Drum Support Description | Eight poly trunnion rollers 8" (20.3 cm) diameter 4" (10.2 cm) width |
| Drum Length | 15ft (4.6m) |
| Thrust Bearing Diameter | 4in (10.2cm) |
| Thrust Bearing Face | 2.9in (7.4cm) |
| Drum Speed | 0-24 RPM |
| Drum Drive Chain | 140 custom extended pin |
| Drum Angle Adjustability | 0-7 degrees |
| Maximum Screen Panels | 4 |
Screen Brushes
| Brush Diameter | 14in (35.6cm) |
| Bristle Material | Polyethylene |
| Brush Assembly Support | Two 1.25" (3.2 cm) sealed ball bearings |
Fines Conveyor
| Conveyor Operation | 17gpm (64.4L/min) |
| Conveyor Motor Displacement | 33cu-in (540.8cu-cm) |
| Fines Conveyor Length | 55ft (16.8m) |
| Fines Belt Speed | 500ft/min (152.4m/min) |
| Conveyor Belt Width | 36in (91.4cm) |
| Conveyor Belt Type | 220 lb, 2 ply, 3/16" x 1/16", R2 splice, Continuous option |
| Conveyor Belt Stacking Height | 15' |
| Head Pulley Type | Rubber lagged, 12" (30.5 cm) diameter, 38" (96.5 cm) wide |
| Head Pulley Bearing | 2 7/16" (6.2 cm) pillow block |
| Troughing Idler Type | 20° CEMA "B" with permanently sealed bearings |
| Self-Cleaning Tail Pulley Dimensions | 10" (25.4 cm) diameter, 38" (96.5 cm) wide with 2.4" (6.1 cm) shaft |
| Head Pulley Takeup | 10in (25.4cm) |
| Self-Cleaning Return Idlers | 4" (10.2 cm) rubber disc, qty 8 |
| Fines Conveyor Frame | 2" (5.1 cm) x 8" (20.3 cm) structural steel tubing |
Overs Conveyor - Option 1
| Overs Conveyor Length | 10.5ft (3.2m) |
| Maximum Variable Overs Belt Speed | 350ft/min (106.7m/min) |
| Conveyor Belt Size | 36 |
| Conveyor Belt Type | 220 lb, 2 ply, 3/16" x 1/16", R2 splice, Continuous option |
| Conveyor Belt Stacking Height | 6' |
| Head Pulley Type | Rubber lagged, 12" (30.5 cm) diameter, 38" (996.5 cm) wide |
| Head Pulley Bearing | 2 7/16" (6.2 cm) pillow block |
| Self-Cleaning Tail Pulley Dimensions | 10" (25.4 cm) diameter, 38" (96.5 cm) wide with 2.4" (6.1 cm) shaft |
